Product description

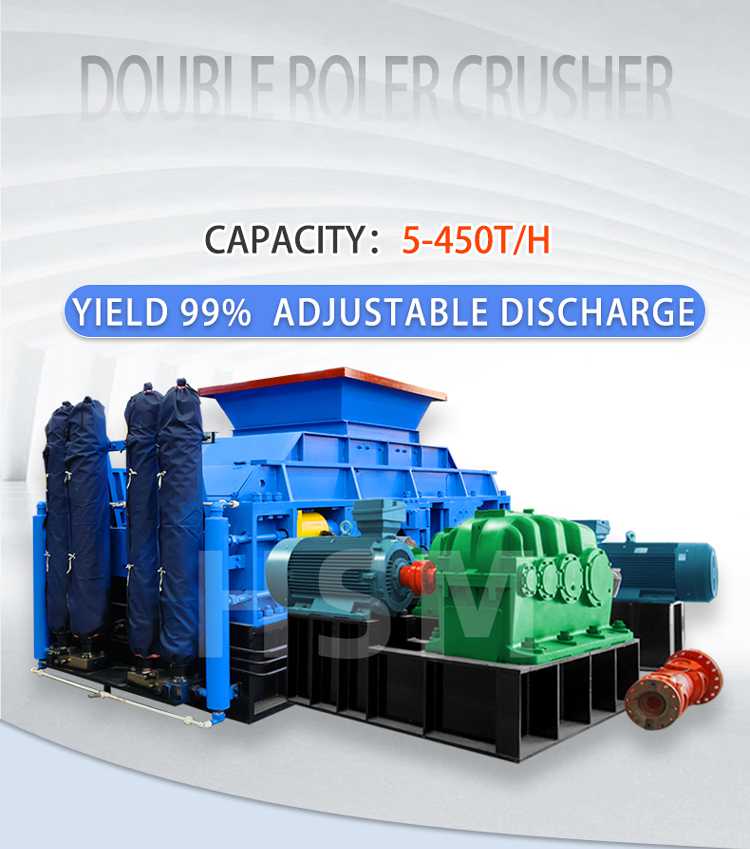

Cement clinker is made of clay, limestone, etc. As a raw material, it is indispensable in construction, repair, building, bridges, etc. It has high economic and use value. Choosing a high-quality Clinker Crusher can achieve good crushing effect and greatly improve the quality of finished clinker. The clinker double roller crusher produced by Huashengming Heavy Industry is suitable for fine crushing operations with feed particle size less than 80mm and finished product particle size requirements of 50 mesh-20mm. It has a large feed particle size and an adjustable discharge particle size, and can withstand materials with compressive strength ≤160MPa.

Why choose Huashengming

1. Clinker crusher is better than hammer sand making machine, and there is no need to replace wearing parts.
2. The sand has full grain shape, reasonable gradation, low over-crushing rate and high output.
3. Clinker crusher has huge advantages over hammer crusher and impact crusher, and the average service life of roller sleeve is more than 2 years.
4. Huashengming high chromium manganese steel wear-resistant material contains rare metal roller skin, which has applied for national patent. The discharge particle size can be accurately adjusted, which has applied for national patent. The clinker crusher roller has applied for national patent.

Applicable materials

Crushing and sand making of river pebbles, calcite, quartz, glass, marble, cobblestone, bentonite, iron ore, bluestone, mountain stone, limestone, weathered sand, diabase, granite, basalt and other materials.

Model distinction

Clinker crushers can be divided into large, medium and small types according to different models.
1. 2PGT400×250, 400×400, 610×400, with an output of about 2-20 tons per hour, are small spring clinker crushers, suitable for investment in small and medium-sized sand plants.
2. 2PGT750×500, 2PGT800×600, with an output of 10-50 tons per hour, are medium-sized spring clinker crushers. This model is suitable for new sand plants with low investment costs.
3. 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800, with an output of 20-80 tons per hour, are medium-sized hydraulic clinker crushers. Hydraulic models are more intelligent, have higher output and save costs.
4. 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000, with an output of 80-400 tons per hour, belong to the large flagship series of CNC hydraulic clinker crushers, suitable for medium and large sand plants, one-key start and stop, convenient and fast.
Gongyi Huashengming Heavy Industry Machinery Factory divides the equipment into five types: high-end, general-end, low-end, CNC, and mobile according to the actual situation of each customer. Customers can ask the sales manager to recommend the product type and performance suitable for them according to their actual situation. There are electric types and diesel-driven types. If you want to know the details, click to leave a message to me.

Performance advantages

1、Simple and light, strong crushing force
2、High efficiency, low energy consumption, better material discharge
3、Widely applicable, long durability
4、Intelligent control, saving electricity and labor

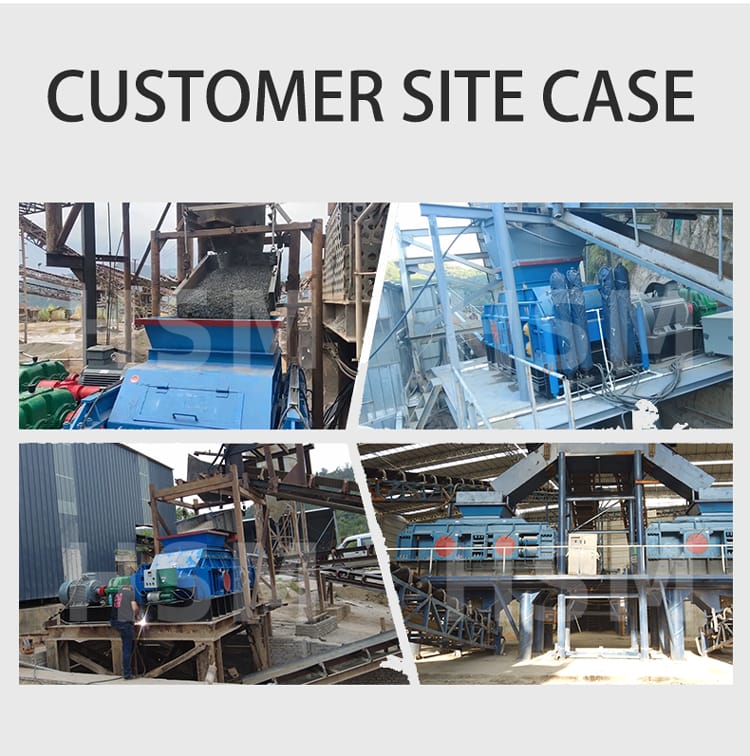

Live shooting

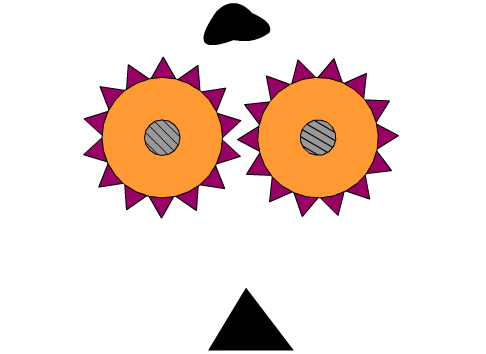

The clinker crusher performs crushing operation through rollers. The material enters between the rollers from the feed port and crushes the river pebbles through the squeezing action. There is a certain gap between the two rollers. The larger the gap between the two rollers, the larger the material particle size. Under the action of the compression spring, the smaller the gap between the two rollers, the smaller the material particle size. By changing the adjustment gap, the material particle size can be controlled.

Technical parameters
