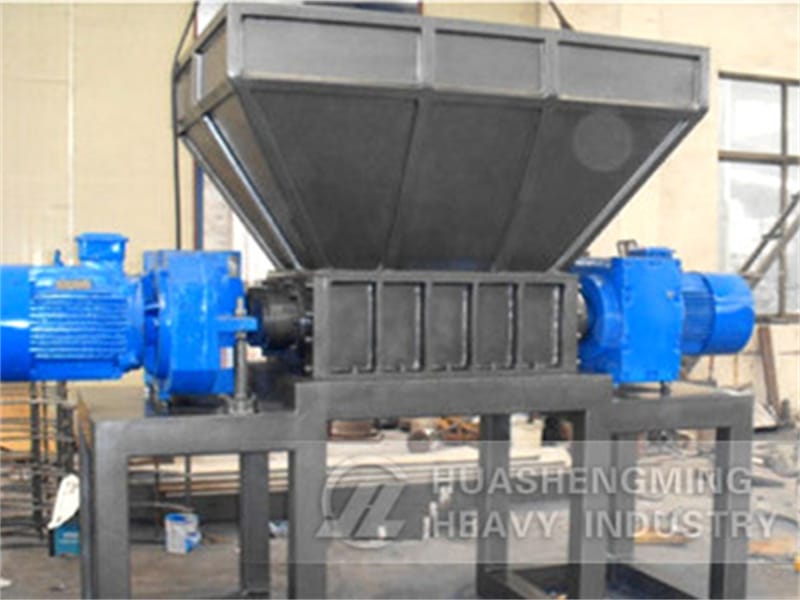

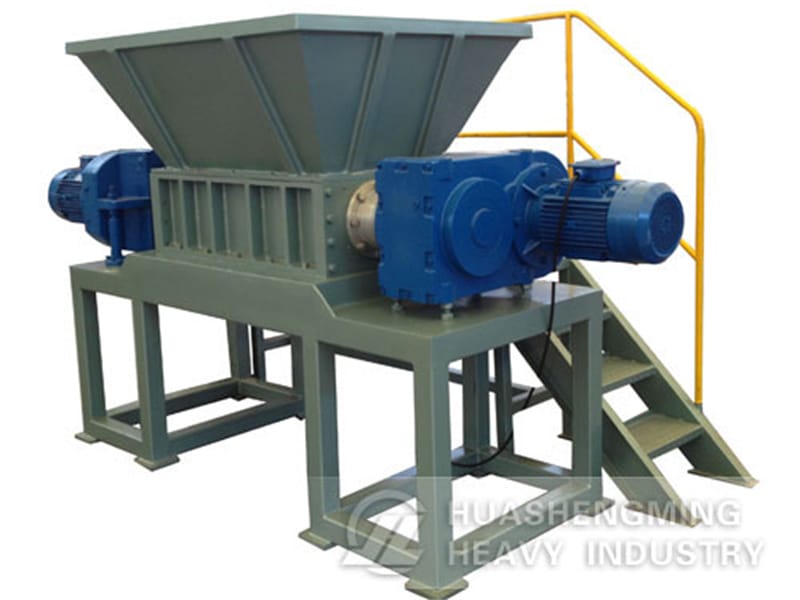

Double Shaft Shredder

Applicable materials:Shredding plastic, rubber, fiber, paper, wood, car tyre, TV, large hollow materials, such as plastic buckets and some other large vessel, all kinds of combined waste materials, especially those with metals, or worn cutting tools.

Feed size:1000 mm
Productive capacity:0.5-30 t/h

Application scope:Shredding plastic, rubber, fiber, paper, wood, car tyre, TV, large hollow materials, such as plastic buckets and some other large vessel, all kinds of combined waste materials, especially those with metals, or worn cutting tools.

get quote
WhatsApp

Product description

Double shaft shredder is applicable to crush large plastic/rubber such as shells of TV sets, washers and refrigerators, vehicle guardrail, large pipes, chemical barrels and fork plates, plastic door frame, as well as dies, tires, electric cable, IC boards and aluminum/paper products, waste cloth, waste furniture, wood, straw and household garbage.

suitable for more than 200 types hard materials

River pebble sand making
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

Sand Production Application
Mineral Processing Crushing Applications

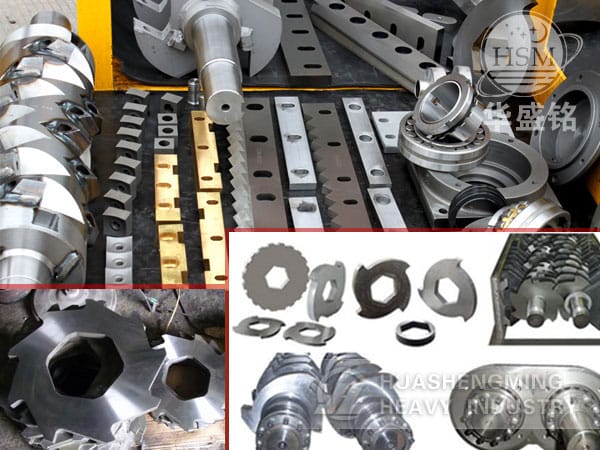

1. The depth of cutting tools and the quantities of cutting blade can be replaced, according to different raw materials.

2. When shredding hollow materials, the pressing device can be matched for improving the capacity.

3. Rotary screen mesh can be added to control the output sizes.

4. When the double shaft shredder runs with low speed, it could be up to higher environmental standard for noise and dusts.

Technical parameters

	Model	Power (kw)	Capacity (kg/h)	Shear?Knife (piece)	Feeding?Size (mm)
Shear?Knife 200*20	SX—500	7.5	300-600	16	680*760
	SX—600	11	400-800	24	840*760
	SX—800	22	600-1000	32	1000*760
	SX—800(big)	15*2	700-1200	32	1000*760
	SX—1000	22*2	800-1500	40	1160*760
Shear?Knife 300*40	SX—600	15	500-1000	12	850*990
	SX—800	15*2	800-1200	16	1010*990
	SX—1000	18.5*2	1000-1500	20	1170*990
	SX—1200	22*2	1500-2000	26	1410*990
	SX—1500	30*2	2000-2500	38	1890*990
Shear?Knife 400*40	SX—600	15	800-1000	12	850*1090
	SX—800	18.5*2	1000-1500	16	1010*1090
	SX—1000	18.5*2	1500-2000	20	1170*1090
	SX—1200	22*2	2000-2500	26	1410*1090
	SX—1500	30*2	2200-3000	38	1890*1090
