Applicable materials:Select and classify powder and granular materials, and is widely used in plastics, abrasives, chemicals, medicine, building materials, food, carbon, fertilizer and other industries.
Application scope:Select and classify powder and granular materials, and is widely used in plastics, abrasives, chemicals, medicine, building materials, food, carbon, fertilizer and other industries.

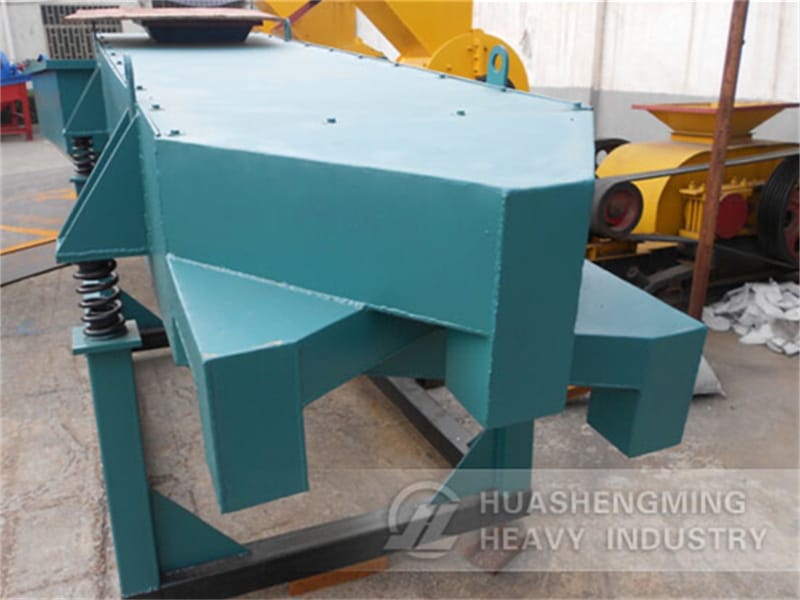

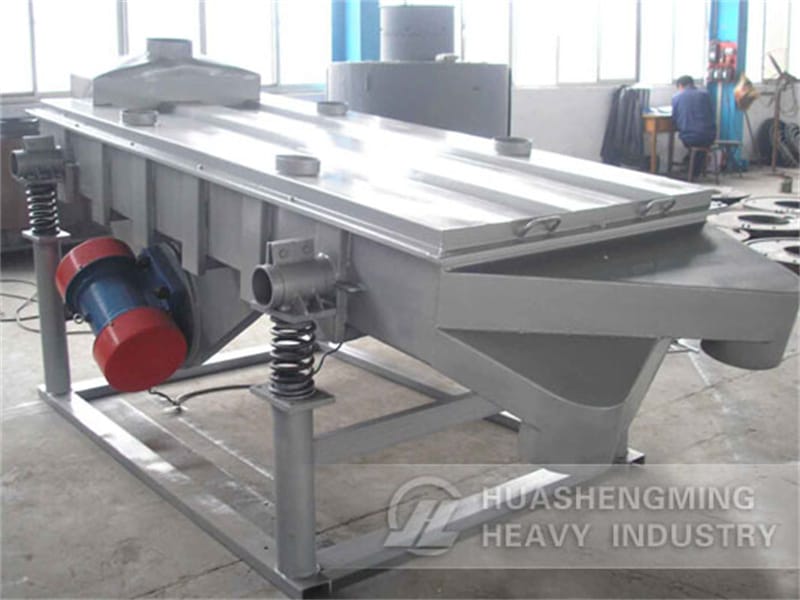

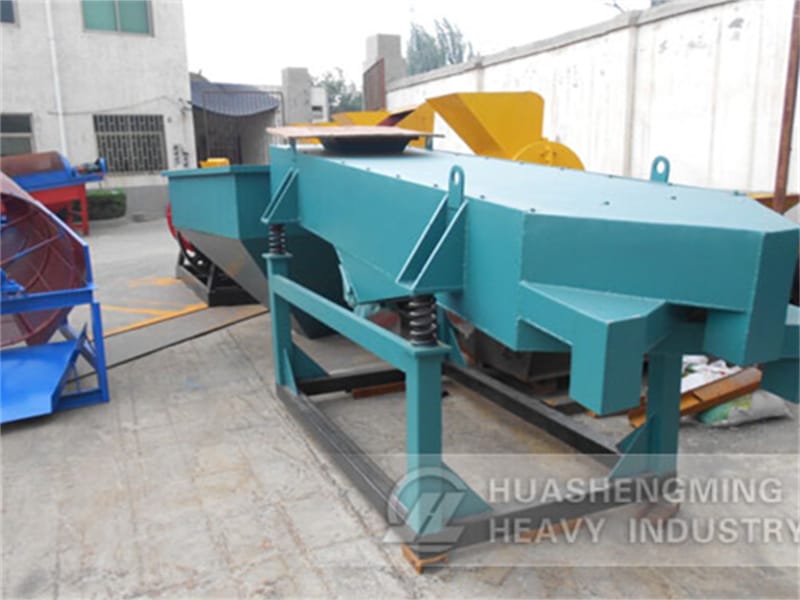

Linear Vibrating Screen is used to select and classify powder and granular materials, and is widely used in plastics, abrasives, chemicals, medicine, building materials, food, carbon, fertilizer and other industries.

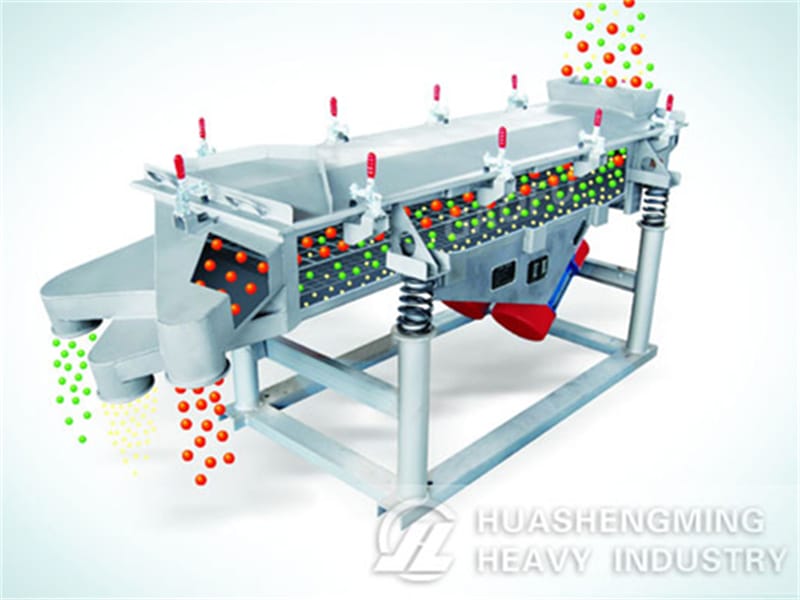

Linear Vibrating Screen mainly consists of the eccentric block vibrator, screen box, motor, and supportive device. Through the flexible coupling, the motor drives the eccentric block of the vibrator at high rotary speed, generating the centrifugal force, and then lead the screen box to do circular movement by the amplitude. After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realize the purpose of classifying.
| Model | Sieve?specifi- cations |
Sieve layer |
Mesh size |
Feeding size |
Proce?ssing capacity |
Motor power |
Total weight |
Vibra?tion freq?uency |
Double ampl-?itude |
Obli?quity of?sieve |
Dimensions |
| (L*W)(mm) | Layer | mm | mm | (t/h) | kw | kg | (Hz) | (mm) | ℃ | (L*W*H)(mm) | |
| ZSG1237 | 3700*1200 | 1 | 4-50 | <=200 | 10-100 | 5.5*2 | 2250 | 16 | 6-8 | 15 | 3800*2050*1920 |
| 2ZSG1237 | 3700*1200 | 2 | 4-50 | <=200 | 10-100 | 5.5*2 | 3345 | 16 | 6-8 | 15 | 3800*2050*2200 |
| ZSG1443 | 4300*1400 | 1 | 4-50 | <=200 | 10-150 | 5.5*2 | 4100 | 16 | 6-8 | 15 | 4500*3040*2500 |
| 2ZSG1443 | 4300*1400 | 2 | 4-50 | <=200 | 10-150 | 5.5*2 | 4900 | 16 | 6-8 | 15 | 4500*3040*2700 |
| 3ZSG1443 | 4300*1400 | 3 | 4-50 | <=200 | 10-150 | 5.5*2 | 5870 | 16 | 6-8 | 15 | 4500*3040*2820 |
| 2ZSG1548 | 4800*1500 | 2 | 5-50 | <=200 | 15-200 | 7.5*2 | 5836 | 16 | 8-10 | 15 | 4800*3140*2814 |
| 3ZSG1548 | 4800*1500 | 3 | 5-50 | <=200 | 15-200 | 7.5*2 | 6900 | 16 | 8-10 | 15 | 4799*3140*3014 |
| 2ZSG1848 | 4800*1800 | 2 | 5-50 | <=300 | 50-500 | 7.5*2 | 6489 | 16 | 8-10 | 15 | 4799*3440*2814 |
| 3ZSG1848 | 4800*1800 | 3 | 5-50 | <=300 | 50-500 | 7.5*2 | 7750 | 16 | 8-10 | 15 | 4799*3440*3014 |
| 4ZSG1848 | 4800*1800 | 4 | 5-50 | <=200 | 50-500 | 11*2 | 8300 | 16 | 8-10 | 15 | 4799*3440*3503 |
| 2ZSG1860 | 6000*1800 | 2 | 5-150 | <=300 | 80-600 | 11*2 | 9950 | 16 | 8-10 | 15 | 6000*3440*3326 |
