Applicable materials:river pebble, Calcite, quartzite, marble, cobble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, Diabase, granite, basalt.
Application scope:Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.

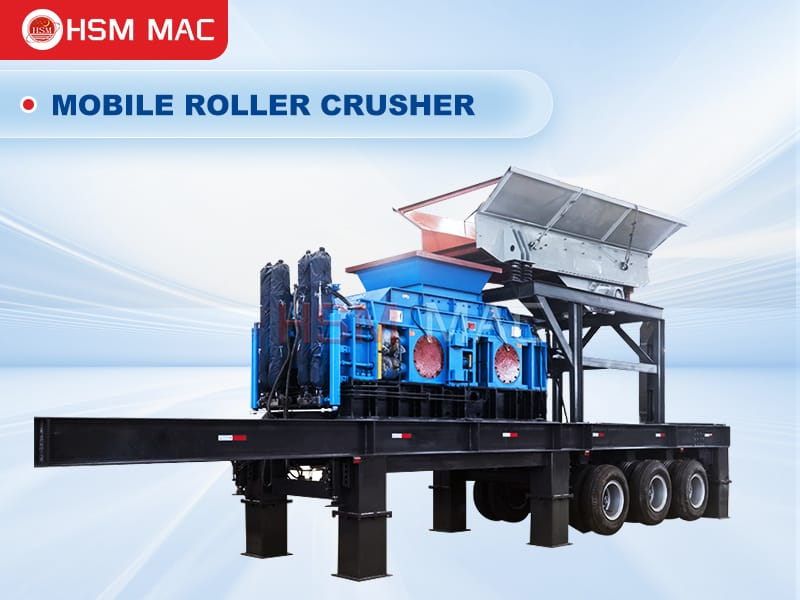

The mobile?double roller crusher can be equipped with coarse crusher, medium crusher, fine crusher and screening equipment according to the customer’s demand, and can be composed of ‘crushing before screening’, ‘crushing before screening’, ‘screening before crushing’ and ‘crushing after screening’ according to the requirements of different crushing processes, and the crushing and screening can be used separately. Crushing and screening can also be used separately. The crushing plant can be combined into two crushing and screening systems according to the actual demand, and can also be combined into three crushing and screening systems: coarse, medium and fine.
Crushing and sand making work of river pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, lapis lazuli, mountain stone, limestone, weathered sand, pyroxene, granite, basalt and other materials.
1. Integrated unit equipment installation form, eliminating the complicated site infrastructure installation operations of the split components, reducing the consumption of materials and man-hours. Reasonable and compact space layout of the unit improves the flexibility of site stationing.
2. Mobile and flexible. It saves time for quick stationing at the site, and is more conducive to stationing in the construction reasonable area, providing more flexible space and reasonable layout configuration for the overall crushing process.
3. Integrated mobile roller crusher, can be used independently, but also for the customer on the process of material types, product requirements, to provide more flexible process configuration, to meet the user mobile crushing, mobile screening and other requirements, so that the production organisation and logistics transfer more direct and effective, the cost to achieve a significant reduction.
The roller crusher performs crushing operations through rollers. The material enters between the rollers through the feeding port and crushes the river pebbles through compression. There is a gap between the two rollers, and the gap between the two rollers increases, resulting in a larger particle size of the material. Under the action of the compression spring, the gap between the two rollers decreases, resulting in a smaller particle size of the material. By adjusting the gap, the discharge particle size of the material can be controlled.
|
Specification and model
|
Roll diameter (mm) |
Feed size (mm) |
Productive capacity (t/h) |
|
2PGT400×250
|
φ400
|
≤25
|
2-10
|
|
2PGT400×400
|
φ400
|
≤25
|
5-12
|
|
2PGT610×400
|
φ610
|
≤30
|
5-20
|
|
2PGT750×500
|
φ750
|
≤30
|
10-40
|
|
2PGT800×600
|
φ800
|
≤40
|
12-50
|
|
2PGY800×800
|
φ800
|
≤40
|
40-50
|
| 2PGY800×1000 |
φ800
|
≤40
|
50-80
|
|
2PGY1000×800
|
φ1000
|
≤40
|
50-80
|
|
2PGY1000×1000
|
φ1000
|
≤40
|
80-100
|
|
2PGY1200×1000
|
φ1200
|
≤60
|
100-120
|
|
2PGY1200×1200
|
φ1200
|
≤60
|
120-150
|
|
2PGY1500×1000
|
φ1500
|
≤80
|
150-200
|
|
2PGY1500×1200
|
φ1500
|
≤80
|
200-250
|
|
2PGY1800×1000
|
φ1800
|
≤100
|
250-300
|
|
2PGY2000×1200
|
φ2000
|
≤120
|
300-400
|
