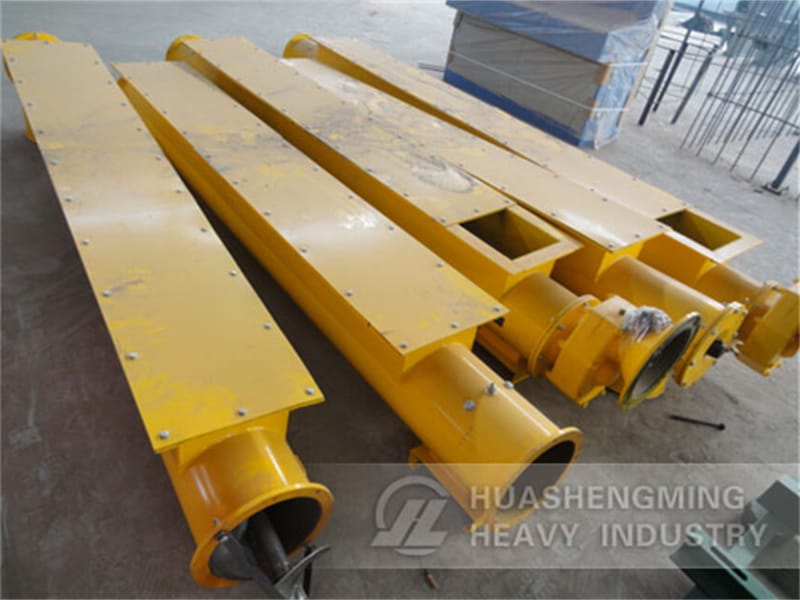

Screw conveyor is bulk material handling equipment, which usually consists of a tube containing either a spiral blade coiled around a shaft (sometimes called an auger), driven at one end and held at the other. The main parts include tube, shaft with spiral blades, inlet and outlet chutes, as well as driving device.






Within a tube, the LSY screw conveyor uses a rotating helical screw blade, to move granular and powdery materials. Cement screw feeder is usually installed at a incline in many industries, such as concrete mixing station, bulk material transit storage, etc.

| Model | Screw Diameter |
Screw?Rotation Speed |
Housing Diameter |
Max. Capacity |
Max. Length |
Inclination Angle |
Power | |
| L?≤?7m | L?>?7m | |||||||
| (mm) | (r/min) | (mm) | (t/h) | (m) | (degree) | (kW) | ||
| LSY?160 | 163 | 308 | 194 | 25 | 15 | 0°~?60° | 5.5 | 7.5 |
| LSY?200 | 185 | 260 | 219 | 40 | 18 | 7.5 | 11 | |
| LSY?250 | 237 | 200 | 273 | 60 | 25 | 11 | 15 | |
| LSY?300 | 285 | 170 | 325 | 90 | 25 | 18.5 | 22 | |
| LSY?400 | 362 | 170 | 402 | 120 | 25 | 18.5 | 22 | |
