Product description

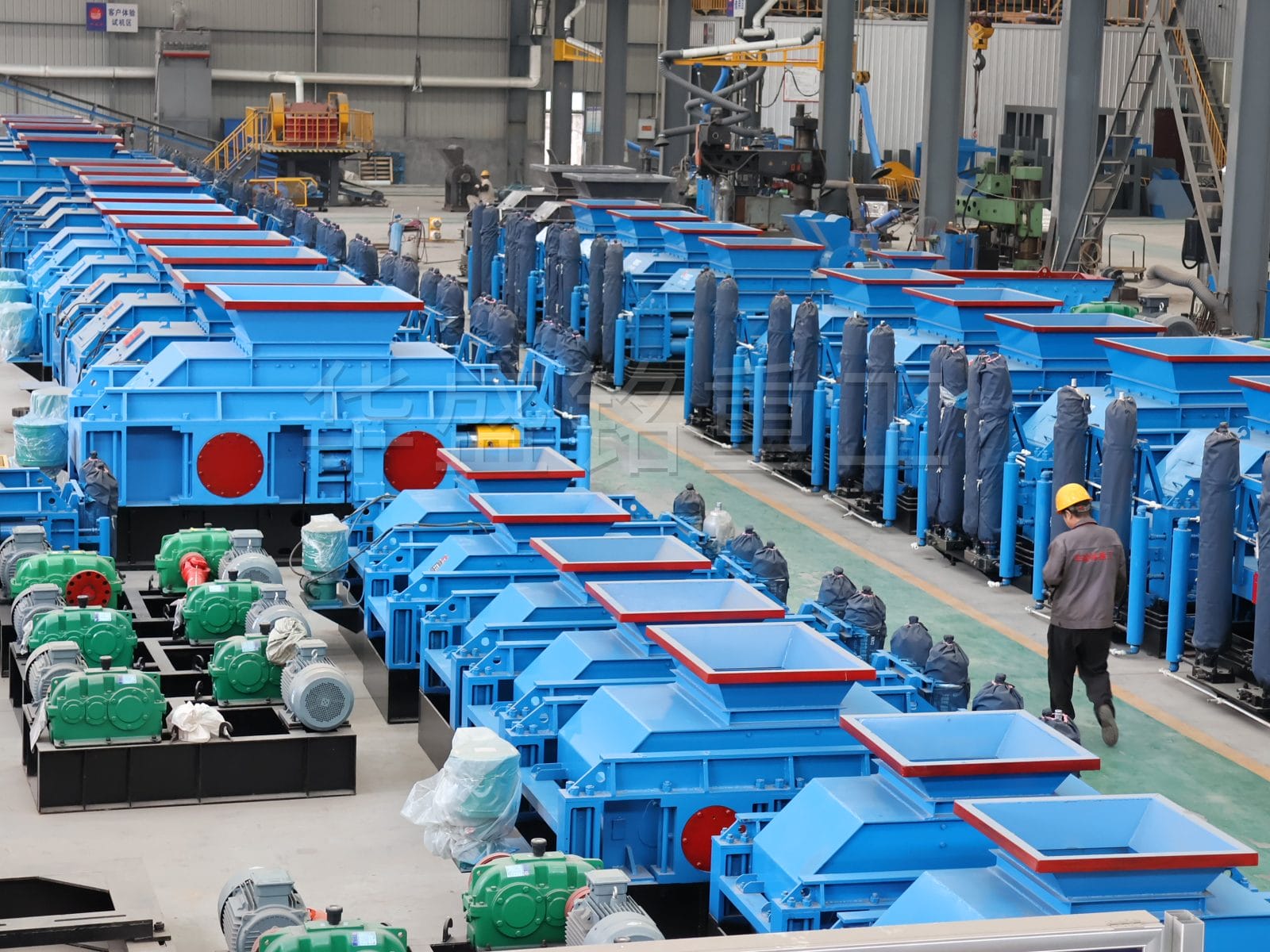

What is Smooth Roll Crusher

The Smooth Roll Crusher represents another breakthrough in the manufacturing of sand and aggregate production equipment. Also known as a dual-roll crusher or dual-roll sand maker, it utilizes two motors to drive dual rollers that crush and grind materials. It is suitable for fine crushing operations where the feed size is below 80mm and the final product size ranges from 50 mesh to 20mm.

The Smooth Roll Crusher is a kind of machine which is extended by the spring roller crusher. The advantage of hydraulic structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.

Why Choose Huashengming?

1.Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

2.High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

3.Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

4.Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Performance advantages:

1. Superior Product Shape: Minimal over-crushing.

2. Adjustable Discharge Size: Simple and precise control.

3. Non-Clogging Design: Optimized structure avoids blockages.

4. Dual Motors: Powerful and reliable.

5. High Durability: Rollers made of patented manganese steel for extended lifespan.

6. Cost-Effective: Low investment and operating costs.

The double roll crusher uses two independently driven rollers that rotate in opposite directions, generating extrusion and shearing forces to crush materials. Feed material enters through the inlet, is crushed by the rollers, and discharged naturally. If unbreakable or oversized materials are encountered, the hydraulic cylinders or springs automatically retract the rollers to widen the gap, allowing the material to fall through safely. The discharge size is adjusted by controlling the hydraulic or spring pressure.

Technical parameters
